WDT-ADF Double Side Synchronous Automatic Laminating Production
Line
1. Raw board: particle boards, MDF boards and HDF boards Product:
furniture board,laminate flooring.
2. Overlaying materials: melamine paper, Al2O3 abrasion resistant paper
3. Standard sizes: 4’×10’, 4’×16’, 6’×8’, 6’×9’, 6’×12’,
6’×16’,7’×9’, 7’×10’, 7’×18’, 6’×16’.
4. Its loader is equipped with compressed air clamp to load board.
5. Features: Double side synchronous, automatic running, automatic
cooling, high efficiency, easy for worker to operate, reliable
equipment, particularly suitable for production of large size
boards and large output occasion.
*Note: If user has special need, we could design according to
user’s need.
1. Features and advantage
Automatic operation, high efficiency, easy operation, reliable
performance, particularly suitable for production of large size
boards and large output occasion. This line need only 2 worker.
We are the first Chinese factory who successfully produced double
side synchronous production line.
2. Layout drawing of WDT-ADF Double Side Synchronous Automatic
Laminating Production Line
3. The main equipment list of WDT-ADF Double Side Synchronous
Automatic Laminating Production Line
| No. | Commodity | Q'ty |
| 1 | Across feeding roller | 2 |
| 2 | Lifter with powered roller | 1 |
| 3 | Pusher | 1 |
| 4 | Brusher | 1 |
| 5 | Positioning conveyor after brusher | 1 |
| 6 | Suction carrier for assembly | 1 |
| 7 | Assembly belt conveyor | 1 |
| 8 | Paper storing lifter | 1 |
| 9 | Lifter for protective board | 1 |
| 10 | Static generator | 1 |
| 11 | Loading conveyor | 1 |
| 12 | Double synchronization system | 1 |
| 13 | Loading and unloading machine | 1 |
| 14 | Hot press | 1 |
| 15 | Hydraulic station | 1 |
| 16 | Unloading belt conveyor | 1 |
| 17 | Trimming machine | 1 |
| 18 | Positioning conveyor for trimming | 1 |
| 19 | Conveyor for inspection | 1 |
| 20 | Cooling machine | 2 |
| 21 | Stacking positioning conveyor | 1 |
| 22 | Stacking carrier | 1 |
| 23 | Stacking roller | 2 |
| 24 | Protective board roller | 1 |
| 25 | Moving vehicle | 1 |
| 26 | Operation cabinet(1) | 1 |
| 27 | Operation cabinet(2) | 1 |
| 28 | Operation cabinet(3) | 1 |
| 29 | Main electrical cabinet | 1 |
| 30 | Recyling temperature control system | 1 |
| 31 | Caul plate changing system | 1 |
4. High quality
Our designer has worked in this industry for more than 30 years, he
is experienced,famous and leading in woodworking machine. Our
supplier is the famous ones in their industry, this guarantees the
high quality of our machine. Following are some suppliers of key
parts.
| No. | Commodity | Manufacturer |
| 1 | PLC | Siemens |
| 2 | HMI | Siemens |
| 3 | Contractor | Schneider |
| 4 | Air switch | Schneider |
| 5 | Photoelectric switch | Omron or Turck |
| 6 | Lmit switch | Omron or Turck |
| 7 | Servo motor | SEW/Lenz |
| 8 | Vacuum generator | Festo |
| 9 | Hydraulic proportional valve | Rexroth |
| 10 | Main hydraulic valve | Rexroth |
| 11 | Hydraulic pump | Rexroth |
| 12 | Motor of hydraulic pump | Rexroth |
| 13 | Transducer | Misubishi or Emerson |
| 14 | Reducer | SEW |
| 15 | Air cylinder | Airtac |
| 16 | Pneumatic valve | Festo |
| 17 | Accumulator | Hydac |
| 18 | Normal bearing | SKF |
| 19 | Bearing with base | China brand |

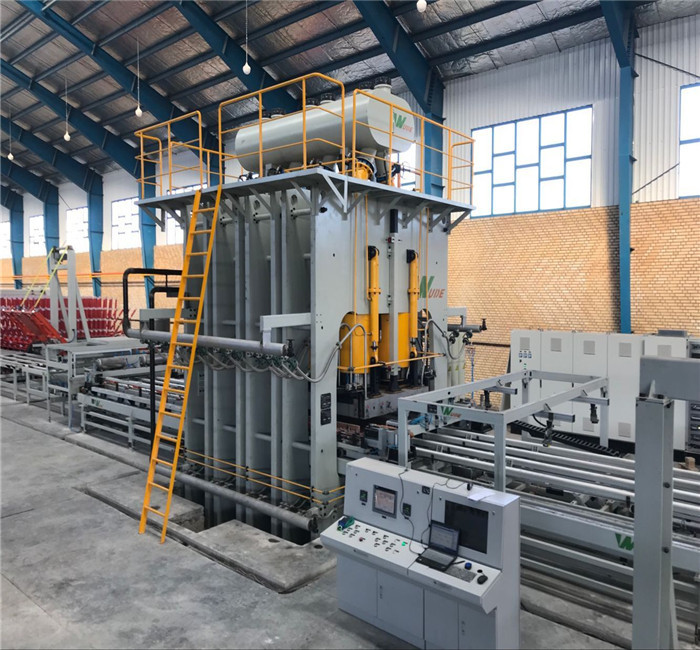

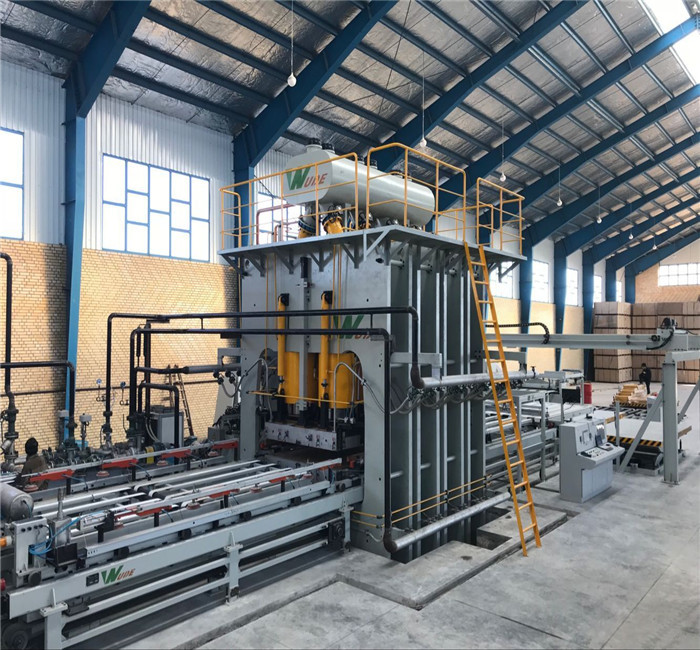

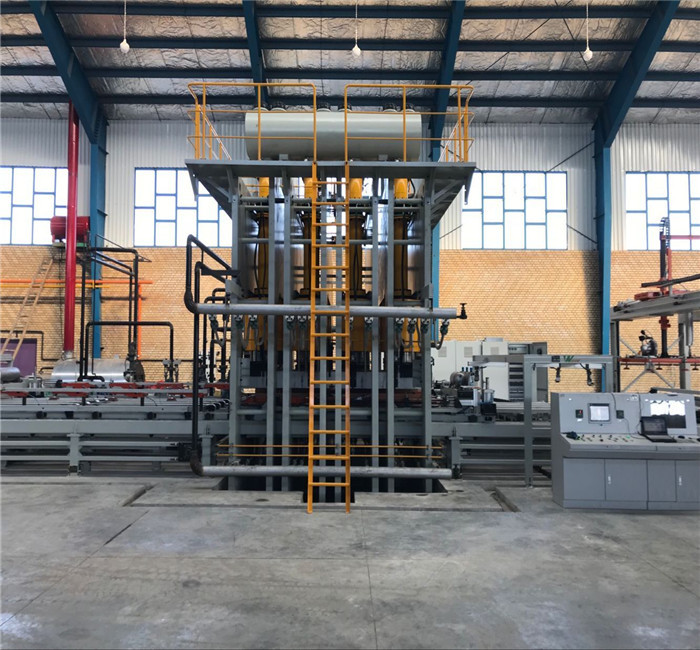

5. Product exhibition
we have selled many Automatic Short Cycle Laminating Press (hot
press) Production Line at home and abroad, following is the photos
of our selled press line
