Specifications of WDYJ-H High Pressure and Multilayer Hot Press
The pressure of This Ppress on Board is Among 75~120kg.
The Size of Board could be 4’×8’, 4’×9’,
4’×10’,5’×10’,5’×12’,6×12’,etc.
Its Specifications are Designed According to Your Detailed
Requirement.
WDYJ-H High Pressure and Multilayer Hot Press/ HPL press
1. Suitable for: HPL, Bamboo Plywood, Insulate Board MDF and
Circuit Board
2. Standard Sizes: 4’×8’, 4’×9’, 4’×10’,5’×10’,5’×12’,6×12’,etc
3. Unit Pressure on Board: 75~120 kg/cm2
4. Composed of: Loading Machine, Hot Press, Unloading Machine and
Setting Plate Circulating System
5. Advanced Automatic Controlling System, You Can Control, Adjust
The Hot Press Process and The Hot Plate Ttemperature.
*Note: If User has Special Need, We Could Design According to User’s Need.
Features and Advantage
(1) Advanced Auto Control Device Like PLC, Computer, Pressure
Sensor, and Temperature Sensor Will be Applied to Electrical System
of This Line.
(2) Computer Screen Can Show Control Interface in English,Chinese
and User’s Language. The Control Interface Shows Parameters Like
Pressure and Temperature Clearly, and It’s Easy to Operation.
According to the Dynamic Curves Formed Automatically on the
Computer, You can See the Pressure and Temperature Changing Process
Vividly.
(3) Some Warning Device is Installed on the Machine. It Gives Alarm
in Time When Problem Occures to Ensure the Product Quality.
(4) This Line Needs Only 3-4 Workers.
The Main Equipments of WDYJ-H High Pressure and Multilayer Hot
Press
| NO. | sections | optionality (√ required) |
| 1 | Loading machine | √ |
| 2 | hot pressing | √ |
| 3 | Unloading machine | √ |
| 4 | Conveying machine | optional |

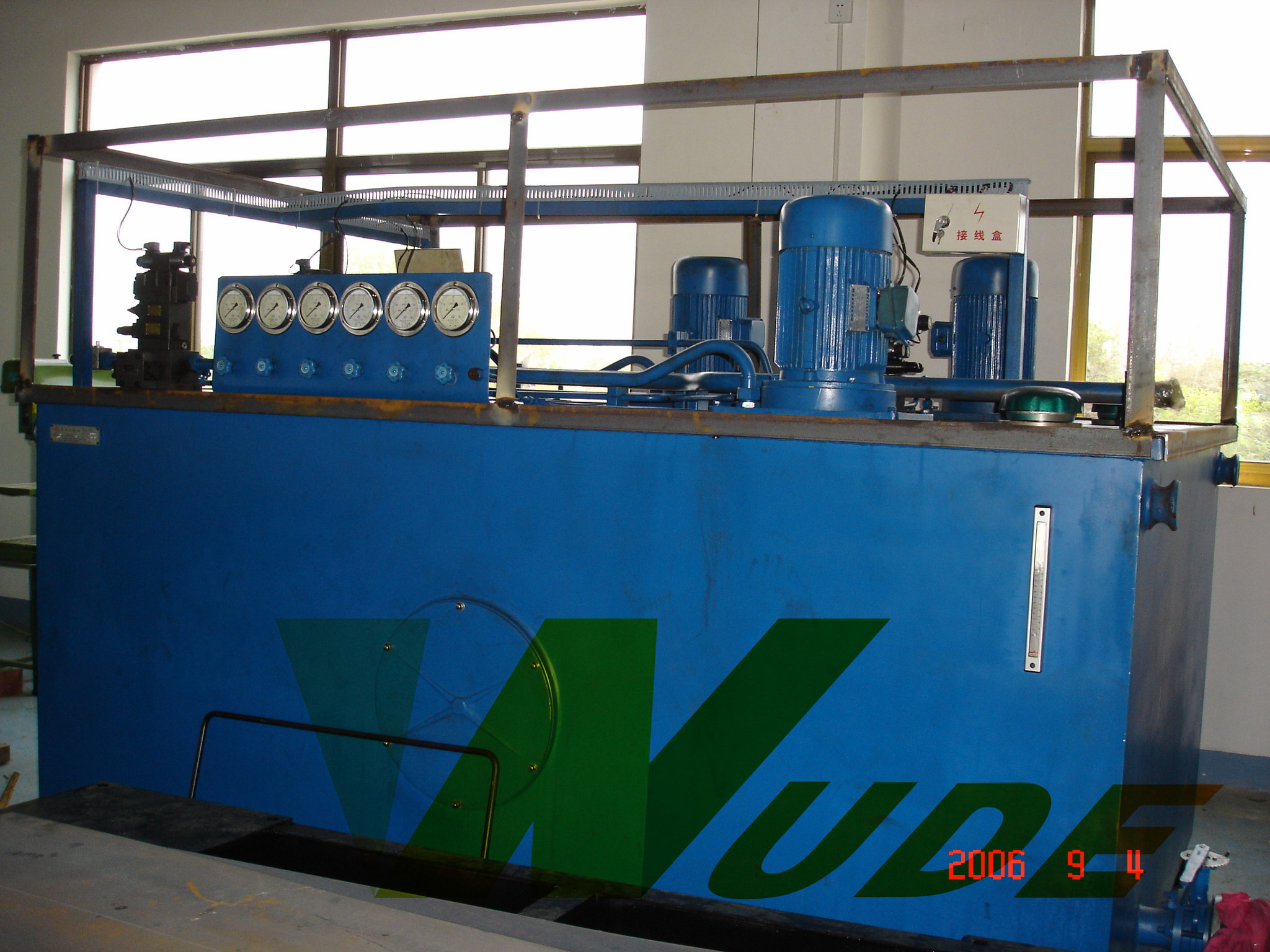

Product Exhibitions
